Productinformatie

Artikelcode: 27-0123

EAN-code: 7440823476461

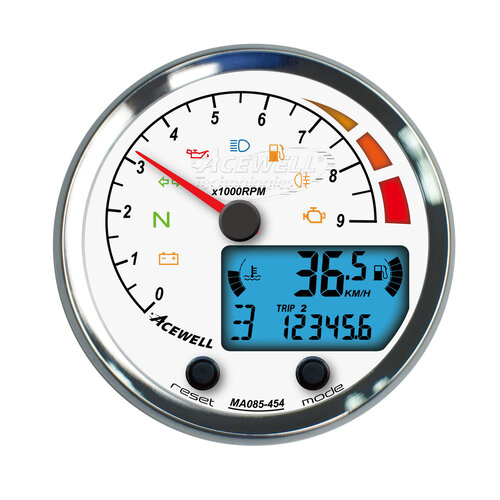

TheAcewellmotorcycle speedometer fromthe ACE-MA085-X54 seriesisaround instrumentwith Classic N needle speed display and digital display show and other functions:

Needle speed meter with shift lightning
digitalspeedometerup to 399.9 km / h
Digitaldisplay of
- Trip meters TRIP 1 + 2
- Total Mileage
- Digital speed display up to 19,900 rpm
- Displayaverage and maximum speed
- Displayaverage and maximum speed
- Temperature - additionallystoragereached maximum temperature
- gear indicator
- fuel gauge
- time of day
- voltmeter
- driving time
- Hour meter
- AdjustableswitchingwarningwithLED display
Gear indicator is taken over speed and speedometer and can be switched off via OFF mode
Schaltblitz with 3 different colors
Scroll function of the second display line of 1-20 seconds adjustable or OFF mode
8 LED indicator lights
Gear display up to 8 gears , Neutral, Reverse as off mode possible
2 temperature displays for oil, water or outside temperature with additional warning LED Display for overheating - sensors included!
Digital speed display up to 19,900 rpm
Adjustable tank tank resistance range from 0 to 990 ohm, or OFF mode
Battery monitoring adjustable from 11.0 to 15.0 volts, reports over / under supply
Maintenance reminder function, can be entered in hours or KM
When new,thetotal mileage, the first 30 km isfreelyadjustable - thennolonger
Universal wheel circumference adjustment range: 1-3999mm
Decrease in the speed of the original sensor possible.
The end user is able to display the speed indicator with or without comma.
Background color from the display in 3 colors selectable. (Blue, green, amber)
Water resistant IP 67 and extremely resistant to water, vibration and impact (vibrations 8G, shock 100G tested)
E-certified
ABE

delivery

Speed sensor with magnet
Temperature sensor (M10x1)
Air temperature sensor
mounting material
Harness with watertight plugs and heat shrink tubing
German installation instructions with circuit diagram
ABE

specifications

features	specifications	interval	accuracy
Needle Tachometer	250-6,000-15,000 umin *	250 umin
Digitaltachometer	10-19,900 umin	10 umin
shift warning	100-19,900 umin	100 umin
speedometer	2.4-399.9 km / h	0.1 km / h	± 1%
Digitaltemperaturedisplay T1	+ 50 ° C - + 180 ° C
Max. Temperature	+ 50 ° C - + 180 ° C
Bar fuel gauge	+/- 0-990 ohms or off	7 bars
Day kilometers 1 & 2	0 - 9999,9 Km	0,1 Km	± 0.1%
total distance	0 - 999999 Km	1 km	± 0.1%
top speed	2.4-399.9 km / h	0.1 km / h
Average speed	2.4-399.9 km / h	0.1 km / h
Travel time RT	0: 00'00 '' - 99: 59'59 ''	1 second	± PPM
Total timeTT	0:00 '- 9999: 59'	1 minute	± 50PPM
time of day	0: 00'00 '' - 23: 59'59 ''	1 second / 1 minute	± 50PPM
voltmeter	8.0-25.0 volts	0.1 volt

Supply voltage :	12VDC voltage
Tachometer input signal	CDI, transistor ignitionorignition coil
Speed sensor :	Reed orHall sensor
Temperature Sensor	Thermo-sensor P 1/8 "
Wheel circumference adjustment :	1mm - 3999mm ( 1mm increments )
Operating temperature :	-20 ° C. - + 80 ° C. (Inside thehousing)
Storage temperature :	-30 ° C. - + 90 ° C. (Inside thehousing)
* Needle speed displayselectable ! seetable

Dimensions :

Outside diameter, bore and depth: 95.0 mm Ø, 85.0 mm Ø and 56.1mm

Note for BMW customers:

For a simple conversion we recommend the following items:

ACE-TA7: electronic speedometer cable for 2V boxers

ACE-IVR03 Led Inverter, needed to charge the battery.

Reviews

(0 reviews)

Plaats ook een review

This is the product. Place the product in your cart!

Acewell

ACE-MA085-X54 series

High quality motorcycle speedometer as a round instrument with classic needle speed indicator and digital speed indicator. You have the choice between 4 speed bands (6,000-15,000 rpm) and dial from the dial in white or black.
