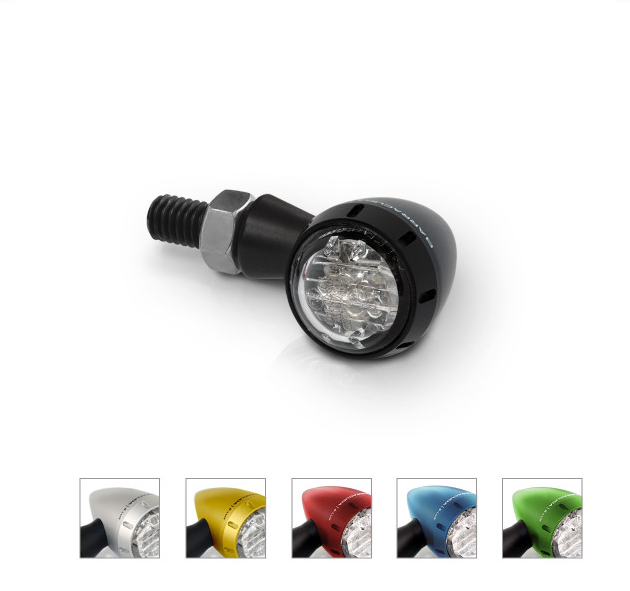

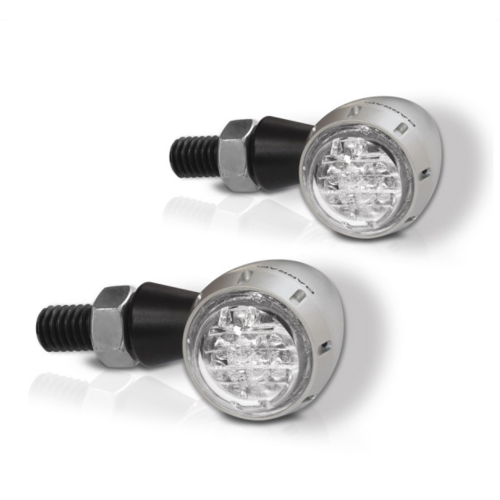

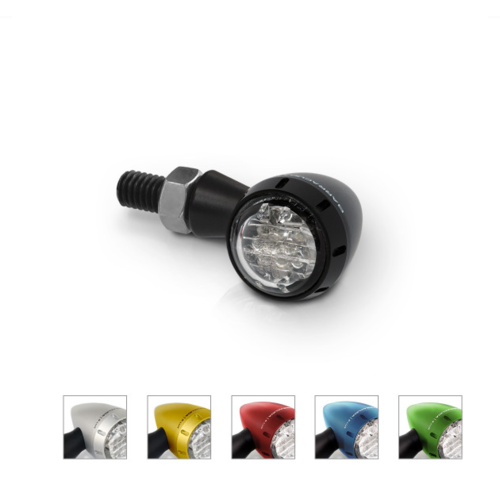

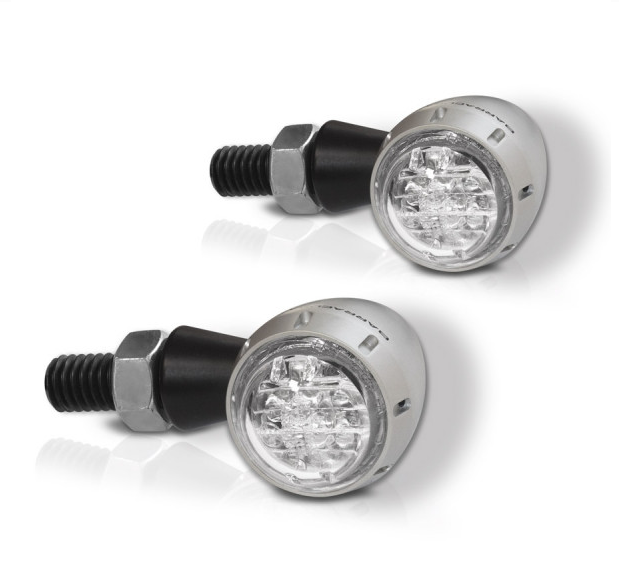

The top of the line E-marked led indicators from BARRACUDA are known as S-LED. They are a component of the B-LUX ALUMINUM LUXURY PROJECT. They are created in tiny sizes and have round, traditional lines that are elegantly finished with a retro-style design. Black, red, silver, gold, green, blue, and six other anodization colours are available for S-LED. All market motorcycles can use the BARRACUDA LED INDICATORS because they are UNIVERSAL, E-MARKED, and interoperable.
Each bike has a unique mechanism that requires some level of adaptation:
Fits to: Universal - Indicators
- Motorcycles using a 6-watt system must modify the operation and flashing of 10-watt RESISTORS (1 resistor X 2 Indicators / per side), or else use a compatible RELAY.
- Adjust the operation and flashing of 10-watt RESISTORS (x1res. X 1 Indicator) or alternatively, a suitable RELAY, on motorcycles with a 10-watt system.
- In order to change the flashing and operation on motorcycles with a 21 watt system, 21 watt HEATING ELEMENTS (1 res. X 2 Indicators/per side) are required.
- A technical investigation is needed for motorcycles with the original LED system to determine what is required for operation (resistance or RELAY).
- These factors apply to 99% of the motorcycles on the market in general.
- Additionally, some motorcycle models have technical peculiarities that necessitate the evaluation of special electronic adapters on an individual basis. For regular functioning, we advise seeking competent technical assistance.
- To finish the AD HOC INSTALLATION, we suggest consulting the TECHNICAL SHEET for your motorcycle to see whether or not related goods like:
- ADAPTER FOR ROWS (necessary for mounting the indicators on the motorcycle structure).
- RESISTANCE (see above) (see above).
- ADAPTERS FOR CABLE (necessary for connecting the indicators to the original system without the need to make changes to the original cables or connectors).
Barracuda Part number: N1001/BSA, N1001/BSN, N1001/BSO, N1001/BSR, N1001/BSU, N1001/BSV
