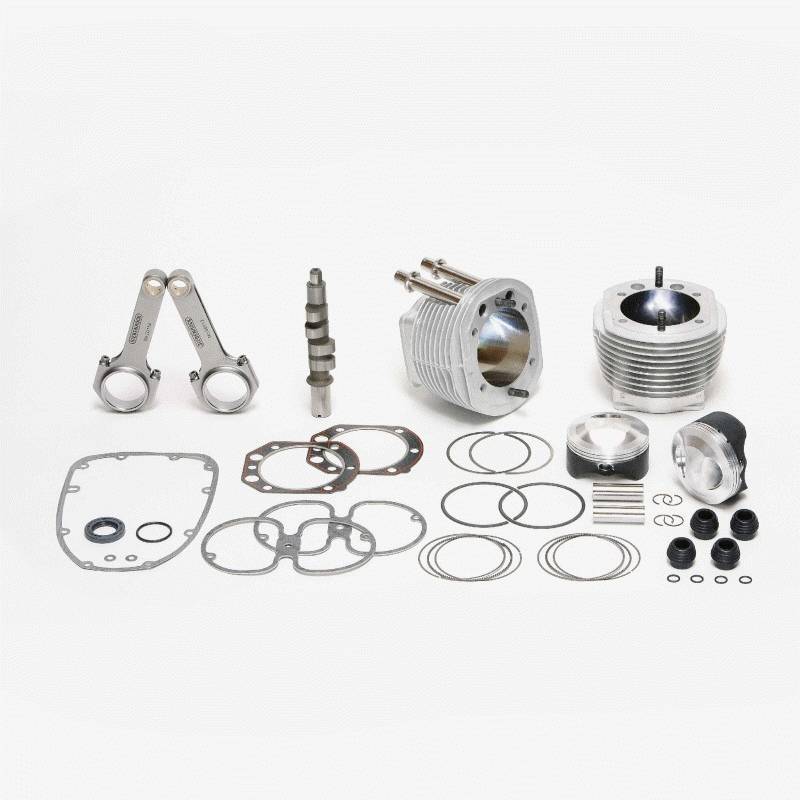

Big Bore Kit 1070cc Plug & Play conrods 151,0 mm.

“Piston capacity can only be replaced by even more piston capacity''-. The goal of this construction was to enhance the motor characteristics which were already outstanding thanks to the Power and Replacement Kits. We didn’t just say this, we went out and did it and the result for all BMW 1000 cc models from 1981 onwards was the 1070 cc Big Bore Kit, which turned out to be the ultimate solution for sporty touring riders. After modification, an amazing 80 hp is available at an engine torque of 92 Nm. That’s what we call a convincing result.

This performance boost was achieved using 151 millimetres long, high-stability connecting rods which, when weight-optimized and fitted with ARP screws, only put 450 grams on the scales. Quite apart from this, 98 millimetres, weight-optimized pistons are used which only weighs 428 grams including the rings, bolts and clips. Thanks to the well-designed piston form, it is not necessary to adapt the cylinder head to the big bore.
All of the parts required to mount the kit are included within the scope of delivery.

TIP
The use of dual ignition is strongly recommended.
An additional performance boost can be achieved by fitting the SGS2 exhaust system.
