Burly Brawler Crash Bar Kit Touring | Black

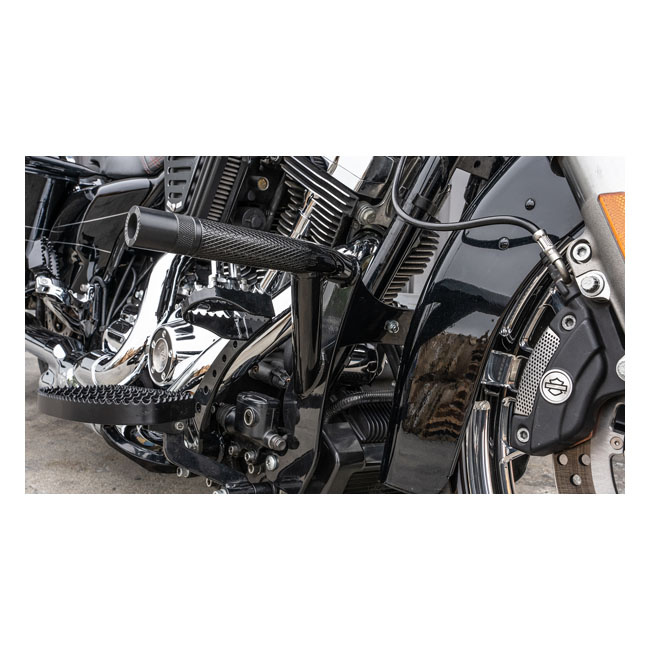

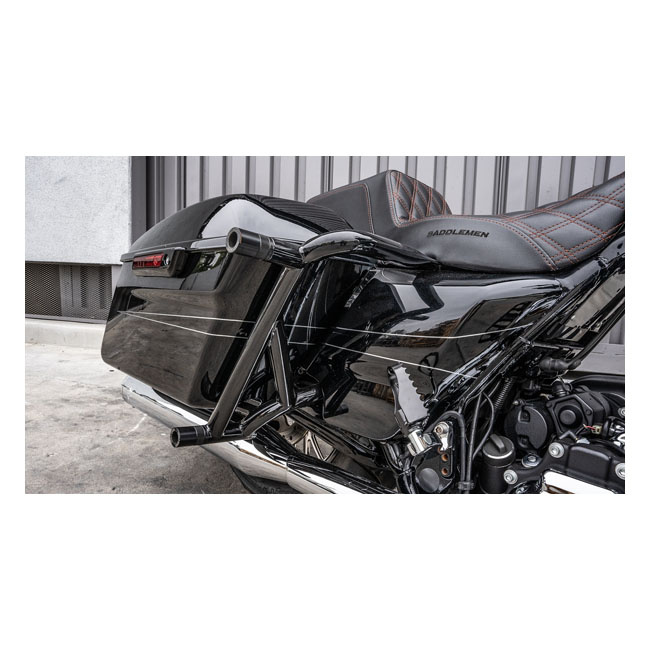

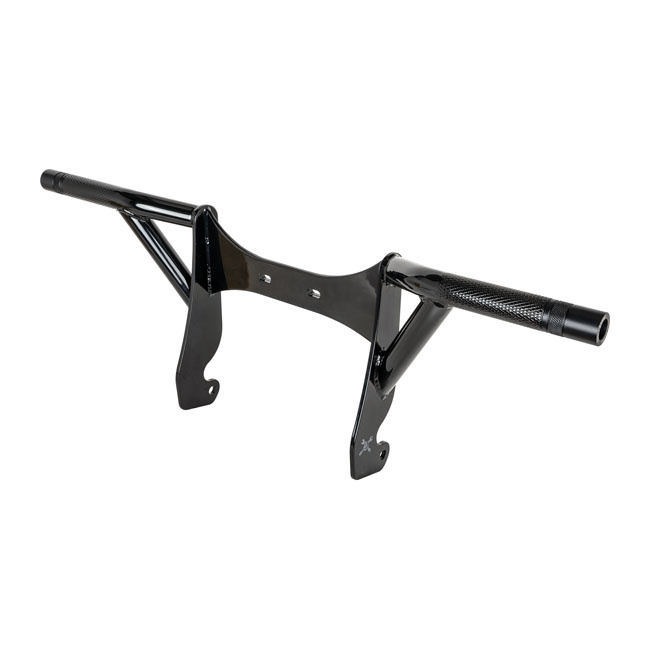

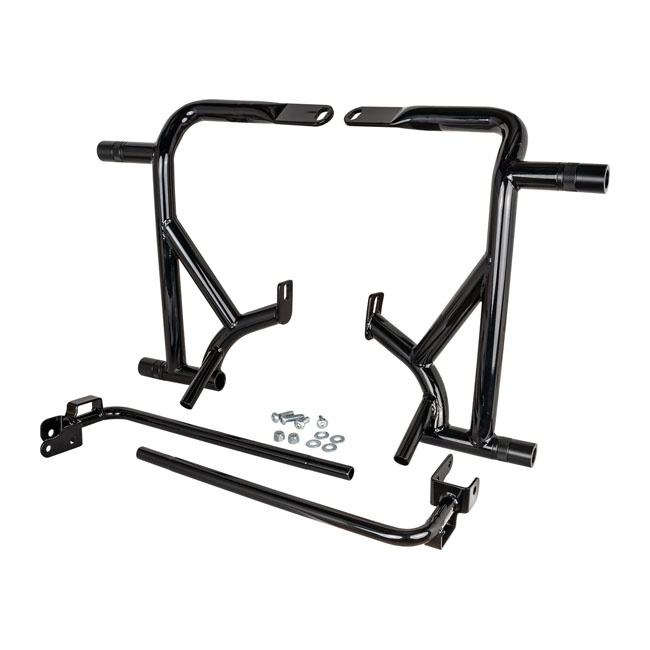

Burly Brawler Crash Bar Kit is for Touring models includes crash bars for both front (engine) & rear (bags). It comes with protective Delrin sliders, which are replaceable.

Specifications:

• Build: High quality steel engine guards with 7 gauge mild steel mount/gussets
• Colour: Black powder coat finish
• 1/2 inch -13 socket head cap screw hardware included
• Includes installation hardware
• TIG welded
• Replaceable Delrin sliders

Installation requires fabrication of new lower fairing support brackets (not included)

Compatibility:

• 09-24 Touring: 09-22 FLHP
• 09-13 FLHR
• 14-19 FLHR
• 14-19 FLHRC
• 17-23 FLHRXS
• 19-22 FLHT
• 09-14 FLHT/C/CU/K
• 15-19 FLHTCU
• 15-16 FLHTCUL
• 09-22 FLHTP
• 09-13 FLHX
• 14-23 FLHX
• 14-23 FLHXS
• 18-22 FLHXSE
• 22-23 FLHXST
• 2009 FLTR
• 11-13 FLTRU
• 10-13 FLTRX
• 15-24 FLTRX
• 15-24 FLTRXS
• 15-22 FLTRXSE
• 22-23 FLTRXST

Note: -

• For 15-24 Road Glide models (excl. 18-21 FLTRXSE CVO Road Glide, 20-24 FLTRXS Road Glide Special and 22-23 FLTRXST Road Glide ST) installation requires new lower support brackets because this kit does not integrate with the original lower fairing support brackets.
• For 09-13 Road Glide models, the Burly crash bar kit does not integrate with the original lower fairing support brackets
• Front Chin Spoiler on some models may need to be removed or replaced with an oil cooler cover to install the Burly Crash Bar kit
• Installation on 09-13 Road Glide and Street Glide models requires replacing lower (left and right) saddlebag supports with H-D part numbers 49194-09A and 90781-09A
• Due to interference from water cooling lines, this kit does not fit Twin-Cooled touring models
• Burly recommends a singular fairing support bracket (not included), H-D 47200354, BRKT, FR FAIR, SPRT Assembly BLK and necessary hardware
