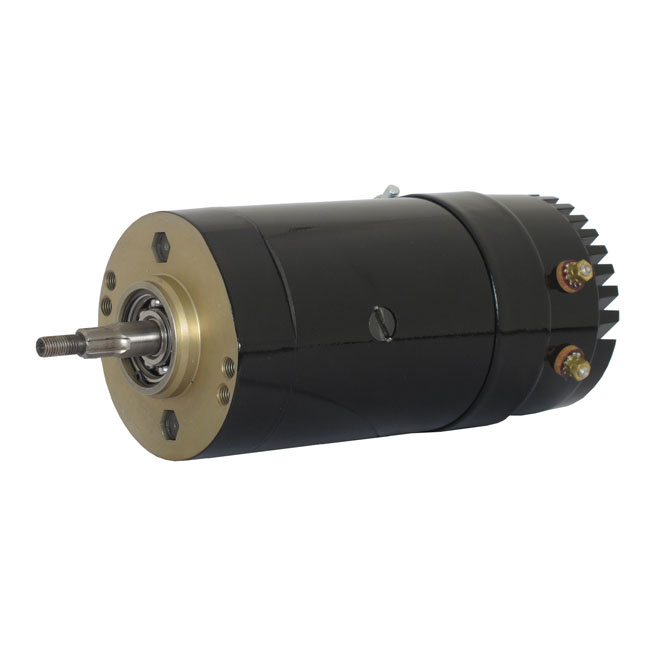

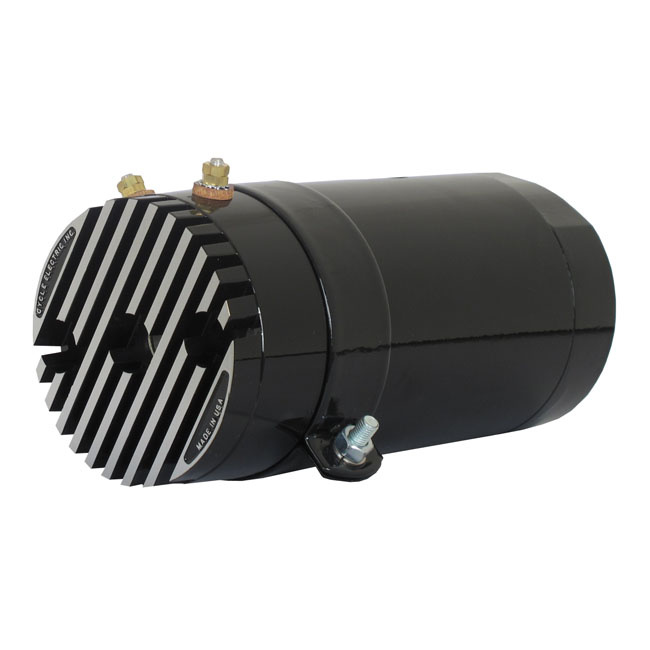

CYCLE ELECTRIC 12-Volt Generator

CYCLE ELECTRIC 12-Volt Generator With built-in cycle electronic voltage regulator with high quality USA made. It allows custom replacement for OEM 29975-65B generator. . It permits XL models to keep their original wiring.

Specifications:

• Color: Black
• Standard output
• High quality USA made
• Voltage - 12 Volt
• Built-in cycle electronic voltage regulator
• Same gear can be re-use

Tech tip:

• Generator polarizing.
• Connect the "F" terminal to ground while the motor is off, and briefly flash the "A" terminal with positive
• Remove ground from 'F' terminal
• If you have properly installed a working regulator it will turn on and ground the 'F' terminal in which case you will not need to use an external ground
• Caution! Do not flash the 'F' terminal. This will damage the regulator
• Do not connect the battery to the Field (F terminal) as this will polarize the generator backwards
• Generators in general don't forget their polarization so it is not necessary to polarize a generator from Cycle Electric Inc
• unless it was connected to a battery backwards or inadvertently polarized backwards after it left the factory
• Only after a long time period generators can struggle to come up and polarization can be a good idea

Compatibility:

• 65-69 B.T.
• 65-84 XL (NU)

Note:

• See 926825 (78-81 XL) or 926826 (82-E84 XL) for XL Sportster connector plug for electronic regulator.
• See 926726 for replacement electronic regulator only.
• Will also fit 36-84 H-D when converting to 12 Volt. When replacing 65B generator (82-E84 Hitachi), add H-D #31035-58 (CYCLE ELECTRIC 555773) oil deflector.
• See 926745 for the special Low Output version, designed to help prevent overcharge for models with hot batteries (read: battery mounted in horse shoe oil tank).
