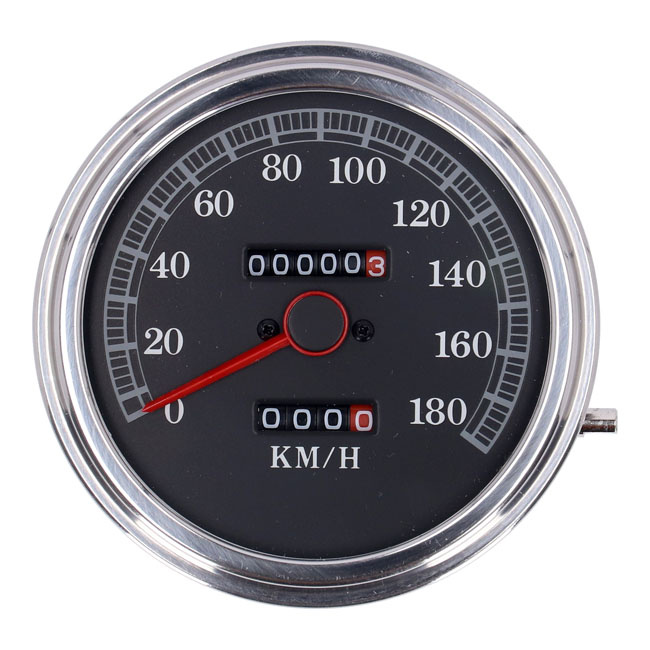

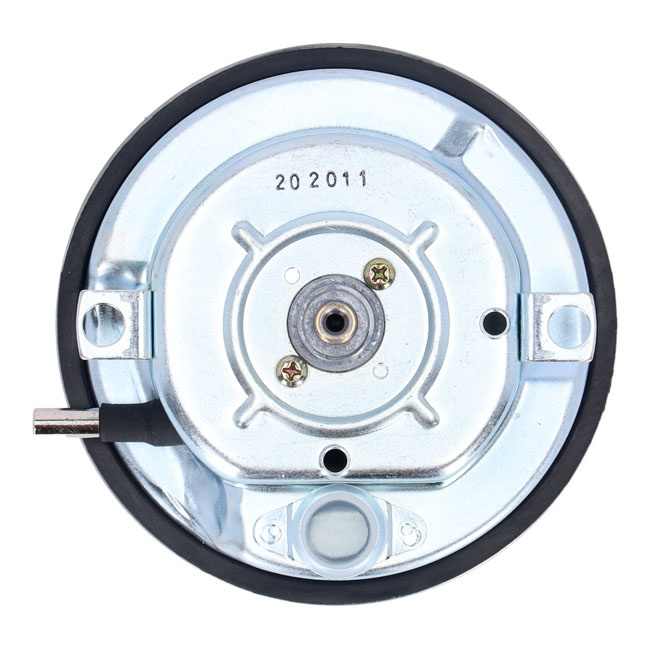

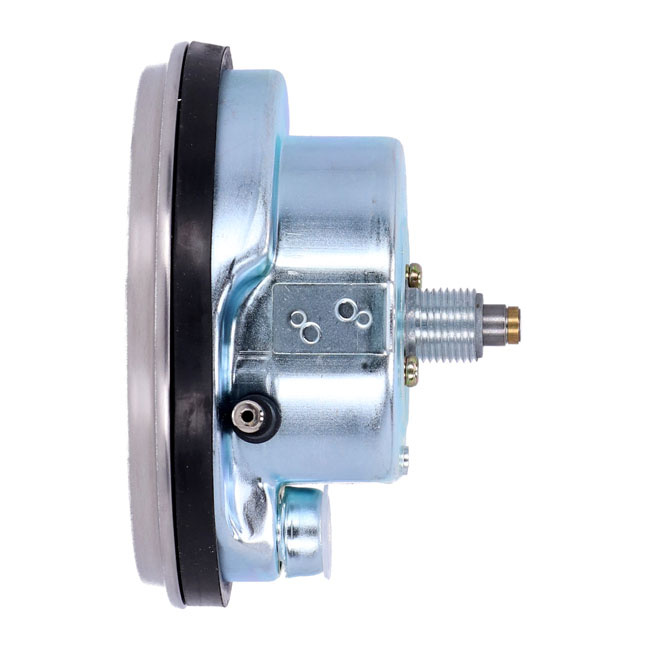

This speedometer features a 5/8-18 threaded speedo cable connector. For reference, we've named the earlier 'FL style' speedometer faces with 'model years' to help with identification. These may not accurately represent actual model years and are for reference only.

Most FL type speedometers are available with either K.M.H. or M.P.H. faces. All speedometers from the '36-40' face to the '00-03' face have the same dimensions and fit the FL, FLH, Fat Bob, FLST, FXST, etc., tank-mounted style dash. Note that a small modification to the dash may be needed to fit the reset knob correctly.

• 2:1 ratio is suitable for most front wheel drive.
• 1:1 ratio is suitable for most transmission drive models.
• 84-95 Softail models may have a different 2.24:1 ratio, and there are a few speedometers listed for this ratio.

Note: Turn signals on 1991-up models will no longer self-cancel.

Speed ratios:

• 60 M.P.H. = 1000 R.P.M. (= 1:1)
• 60 M.P.H. = 2000 R.P.M. (= 2:1)
• 60 M.P.H. = 2240 R.P.M. (= 2.24:1)
• 60 K.M.H. = 700 R.P.M. (= 1:1)
• 60 K.M.H. = 1400 R.P.M. (= 2:1)
