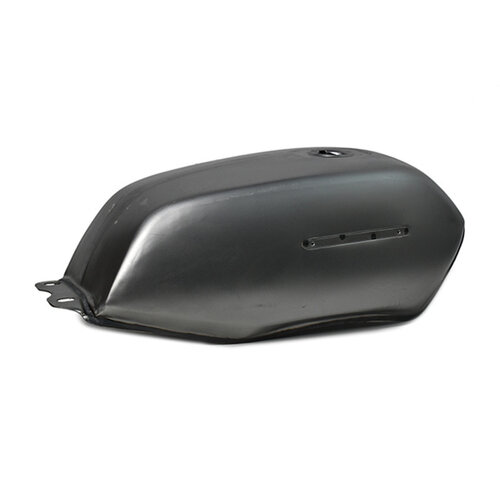

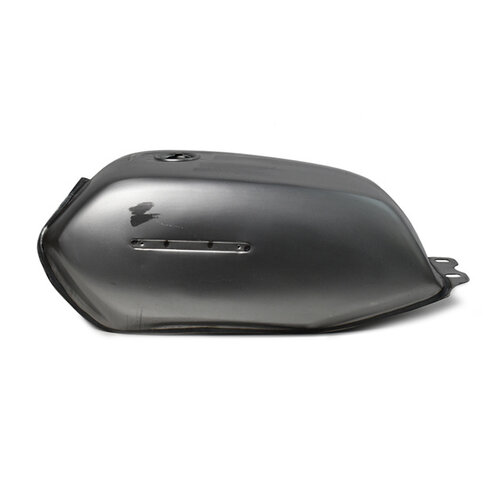

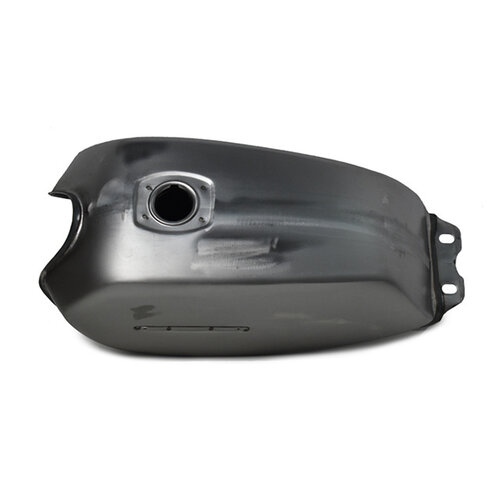

Fuel Tank with Accessoires Type 4. These Steel Tanks come with accessories like a cap, fuel petcock and sometimes fuel sensor.

Note: Usually we supply the tanks as bare metal tanks, but we do have them with a black coating as well. We ship what we have on hands.

Dimensions:
(These can differ a few milimiters)

Length: 550 mm (510 mm excl. mount)
Max width: 260 mm
Width at the petcock point: 190 mm
Tunnel depth at the front: 130 mm
Tunnel depth at the petcock point: 100 mm
Tunnel width at the front: 95 mm
Tunnel width  at the petcock point: 130 mm
Max height: 200 mm
