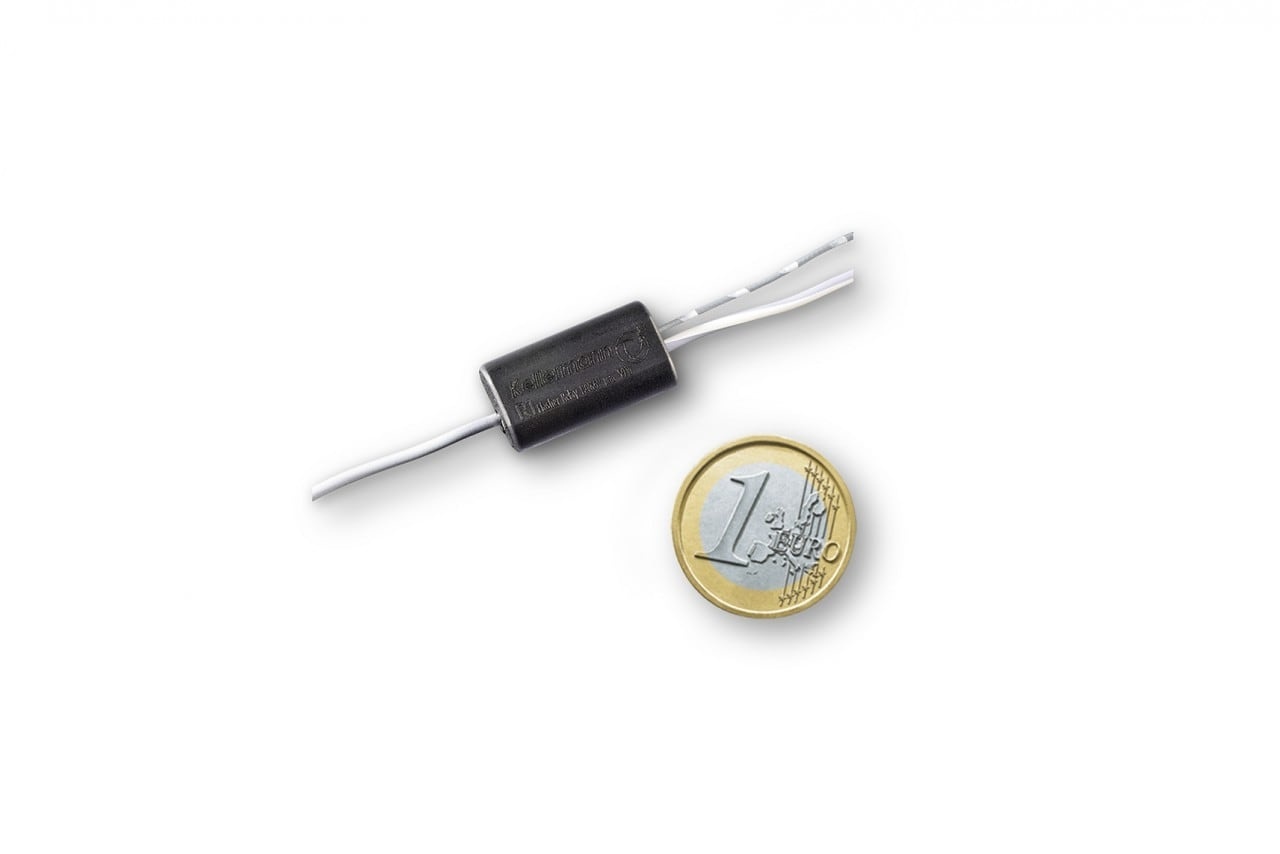

Kellermann R1 Flasher Micro Relay
€--,--
✔ Available in 2-4 business days
Description

The R 1 flasher relay is small and compact and flashes at a constant 75 pulses per minute regardless of load. Additionally, there is a connection there for the dashboard flasher light. It can be swapped out for the original 2-3 pole flasher relay or is readily fitted into the feed of the indicator switch. As a result, it works with all motorcycles that have indicator switches. The indication control light must also be connected to the R 1 relay in case the switch to LED indicators causes the accidentally triggered indicators to flash as well. After then, the "hazard alert" effect will actually work. There are all the parts included that are needed for installation. Further, it has 5-year manufacturer's warranty since 2022 which makes it more preferable. All products are ECE approved and can be installed directly without additional approval.

ECE-Tested

  • Simple installation in feed to the indicator switch or swap the original 2-3 pole flasher relay
  • Connection to indicator control light also possible
  • Restricts the accompanying flashing of non-activated indicators
  • Load-independent / steady flash rate
  • Switching capacity 0-50W by 12V/ 0-24W by 6V
  • Very small dimensions 22 x12 x 6 mm (L/W/H)
  • Suitable for indicator switches
  • Suitable for 6 and 12 volt DC applications

Specifications:

Functional FeaturesFlasher relay
Height6 mm
Indicator Frequency6V und 12V
Length (Without Thread/Fastening)22 mm
Model YearsAll / andere / unbekannt
TechnologyLED
Wide12 mm

Article Code: 123.965
