✔ Available in 2-4 business days
Description

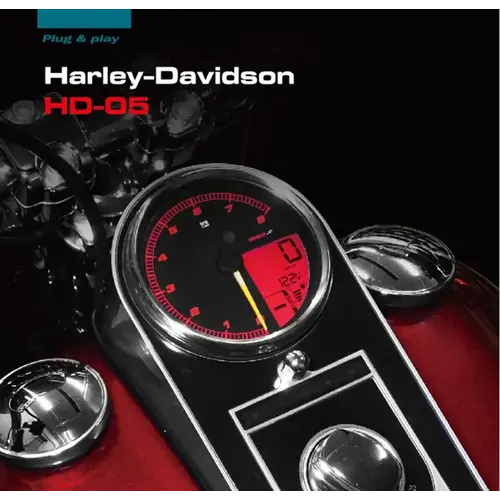

For 4 ½" (=11.43 cm) Harley-Davidson® motorcycles with tank mounted, the New PLUG&PLAY HD-05 series has a speedometer and tachometer combined into one unit. Moreover, there's a gear indicator and an adjustable lighting color. Real-time measurements from the gauge include engine temperature, battery voltage, average fuel economy, and a comprehensive set of parameters to track your motorcycle's health. This Plug & Play set connects directly to the motorcycle's CANBUS system and fits perfectly with the current wire harness.

Features:

  • Speed Display

    • Display Range: 0 ~ 225 MPH (0 ~ 360 km/h) -> adjustable
    • Display Unit: 1 MPH or km/h (adjustable)
    • Response Time: < 0.5 seconds
  • Odometer

    • Display Range: 0 ~ 999,999 miles (km); when exceeded, the odometer resets to 0
    • Display Unit: 1 mile (km)
  • Dual Trip Meter A/B

    • Display Range: 0 ~ 9,999.9 miles (km); when exceeded, the trip meter resets to 0
    • Display Unit: 0.1 miles (km)
  • Tire Circumference

    • Adjustment Range: 50 ~ 210%
    • Adjustment Unit: 1%
  • Gear Indicator

    • Display: Off / N / 1 ~ 6
  • Tachometer

    • Display Range: 0 ~ 8,000 RPM
  • RPM Limit Light

    • Adjustment Range: 2,000 ~ 8,000 RPM
    • Warning light flashes once the programmed maximum RPM range is exceeded
    • Adjustment Unit: 100 RPM
  • RPM Exceeding Warning Mode

    • Adjustment Range: Light on (F/OFF) / Flash (F/ON)
  • Engine Temperature

    • Adjustment Range: 40 ~ 419 °F (40 ~ 215 °C)
  • Fuel Gauge

    • Display: 6 fuel level steps
  • Fuel Capacity

    • Adjustment Range: OFF / 1 ~ 9.9 US gallons (approx. 37 liters)
  • Average Fuel Consumption

    • Display: OFF / L/100 km / km/L / MPG (US spec) / MPG (UK spec)
  • Clock

    • Adjustment Range: 12 / 24-hour format
  • Voltmeter

    • Display Range: DC 8 ~ 18 V
  • Backlight Brightness

    • Adjustment Range: 1/5 (dimmest value) / 5/5 (brightest value)
  • Background Colors

    • Adjustment Range: Red / Orange / Yellow / Green / Blue / Indigo / Purple / White
  • Maintenance Intervals

    • Adjustment Range: Off / 300 ~ 10,000 miles (500 ~ 16,000 km)
    • Automatic maintenance reminder according to the set interval
    • Adjustment Unit: 100 miles (km)
  • Fuel Reserve

    • Display Range: 0 ~ 9,999 miles (km)
    • When the range is less than 10 miles (16 km), the display shows: LO RNG
  • Indicator Lights

    • RPM Warning Light
    • Reserve Light
    • Check Engine Light
    • Volt
    • Theft deterrent
    • Cruise control
    • ABS
  • Temperature Range

    • 14 ~ 140 °F (10 ~ 60 °C)
  • Required Voltage

    • DC 12 V
  • Tachometer Standard

    • JIS D 0203 S2

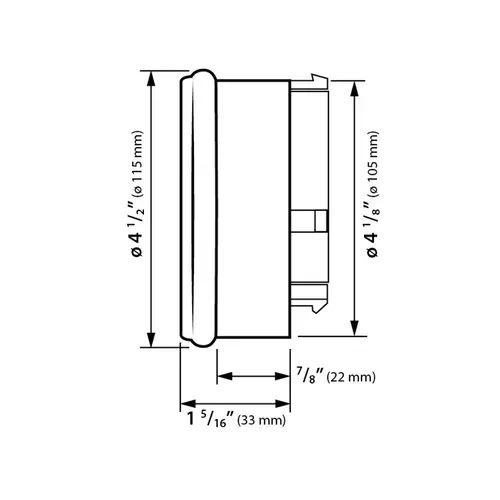

  • Size

    (Diameter x Width) Ø 4-5/8 x 1-3/4” (Ø 117 x 45 mm)
  • Weight

    • 7.36 oz (208.5 g)
Read more
Reviews
0 stars based on 0 reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
Add your review
KOSO HD-05 Multifunction Meter | Dyna, Softail, Road King
KOSO
HD-05 Multifunction Meter | Dyna, Softail, Road King
Uw gekozen opties:

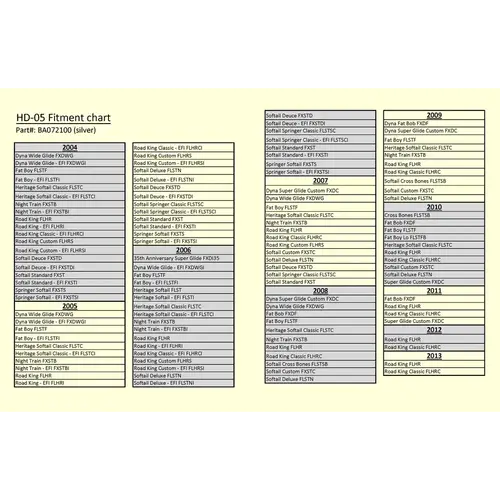

  • Dyna (2004-2011)/ Softail (2004-2010)/ Road King (2004-2013)
