Legend Air-ST Air Suspension Kit | Black | Choose Model

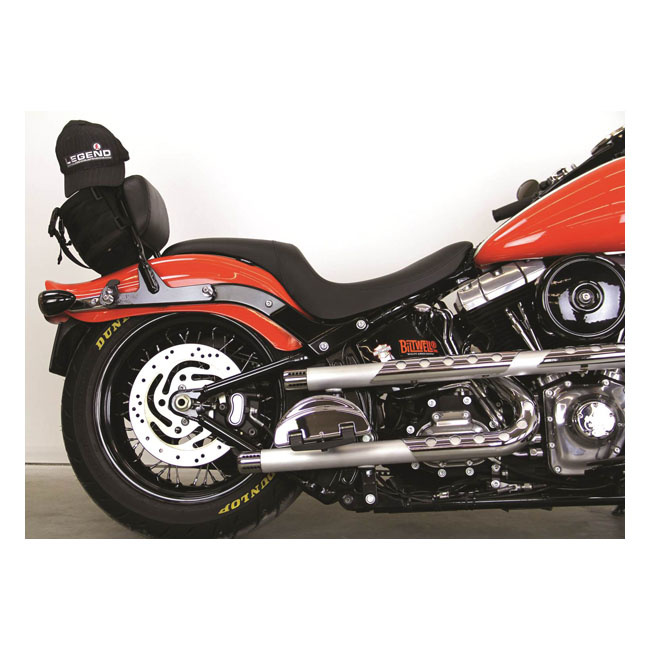

The Legend Air-ST Air Suspension Kit provides factory model height to 3in lower. Its compressor mounts between frame rails on underside of bike. It is compatible as factory replacement without modifications.
Specifications:

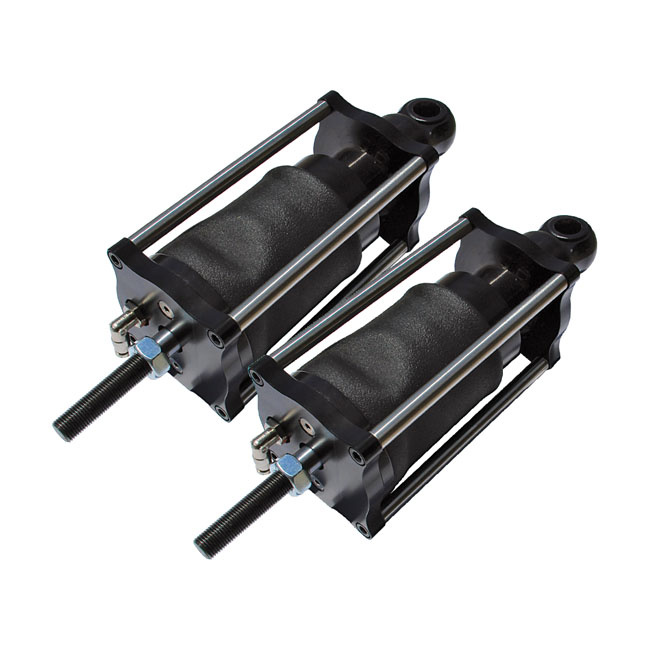

- Build: Hard anodized machined aluminum body
- Superior riding characteristics with spherical shock bearings.
- 12.5in long, 10.9in compressed, 1.6in travel
- It has air compressor with On-The-Fly adjustability pressure with a 1in diameter handlebar push button switch
- Color coded Plug & Play wiring for quick & easy installation
Features:
- Offers stock height to 3in lower
- Aramid Fiber adjustable air spring technology
- Self adjusting deflective disc damping
- Smooth no-stick damping due to low friction seals
- No bottoming out under any load
- Note: Damping is not separately adjustable
Note:
- Mentioned product length are center to center distance between mounting eyes.
- Shock lengths are measured from center of mounting eye to face of shock or nut.
- Lengths do not include compression bumpers.
Compatibility: Compatible with stock low (lowered) models.

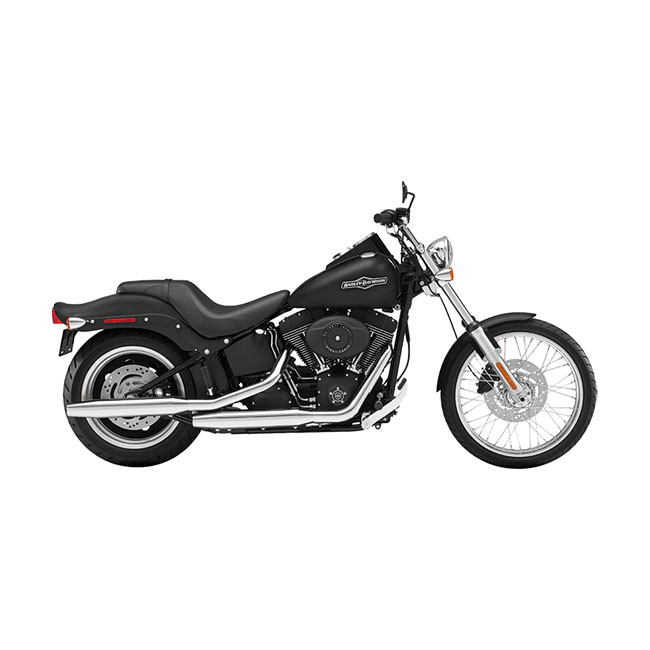

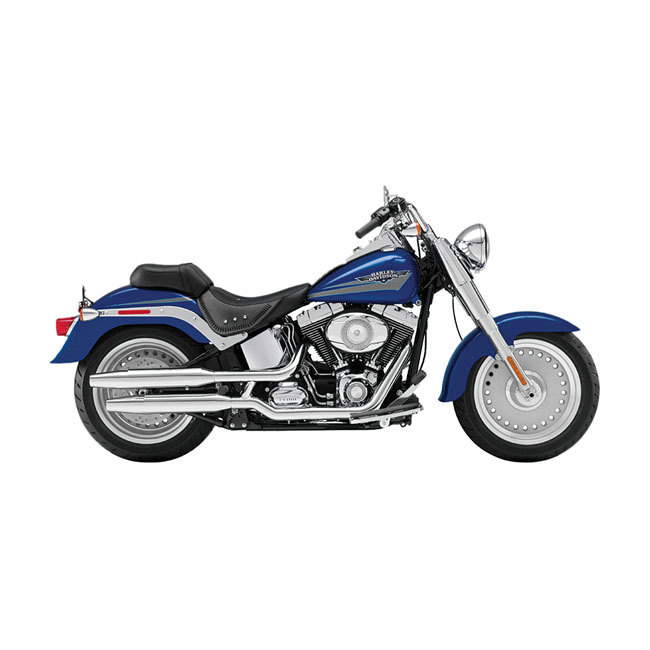

- Variant1 (954744): 00-17 Softail (NU)
- Variant2 (954743): 89-99 Softail (NU)
