✔ Immediately Available
Description

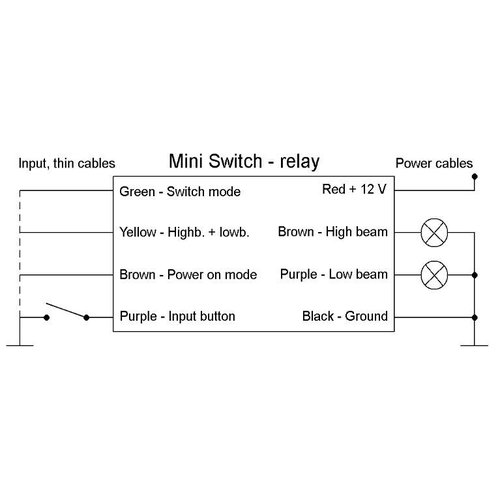

This electronic relay contains two power outputs what can drive 60 Watt / each. The control is with a push button, to be connected to the yellow cable (and the ground cable). Every push on the button will change the status of the outputs. This is the standard operation for low - and high beam. If the green cable is connected to the ground cable, the outputs will change simultaneously. In this case, you can use the relay as a 120 Watt switch. Just cut the cable for the normal change between low beam and high beam.

Dimensions:
38 mm x 16 mm x 11 mm
Body material:
ABS, water resistant
Body Colour:
Black with a blue sticker
Connections:
0,22 mm3 for input, 1 mm3 for power output
Power consumption in operation:
7 mA logic part
Maximum temperature:
80 degree Celsius
Input voltage range:
7 - 18 Volt
Maximum current:
2 x 5 Ampere, short circuit protected
