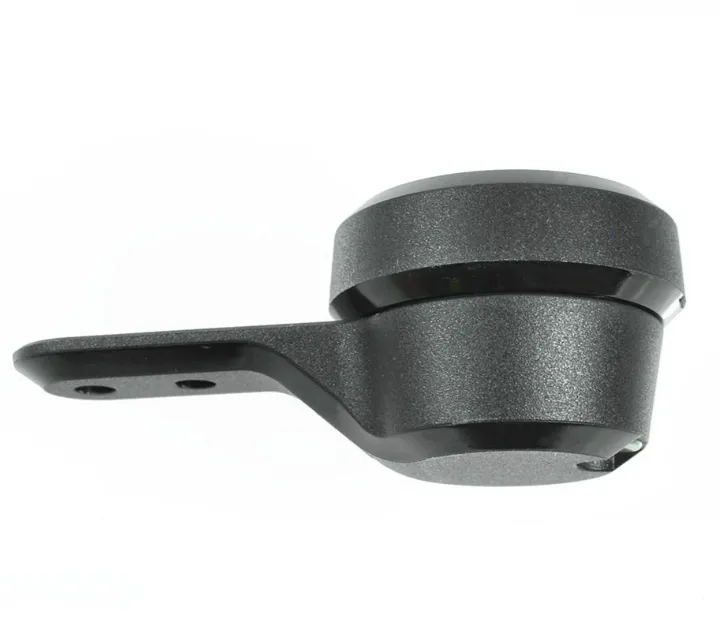

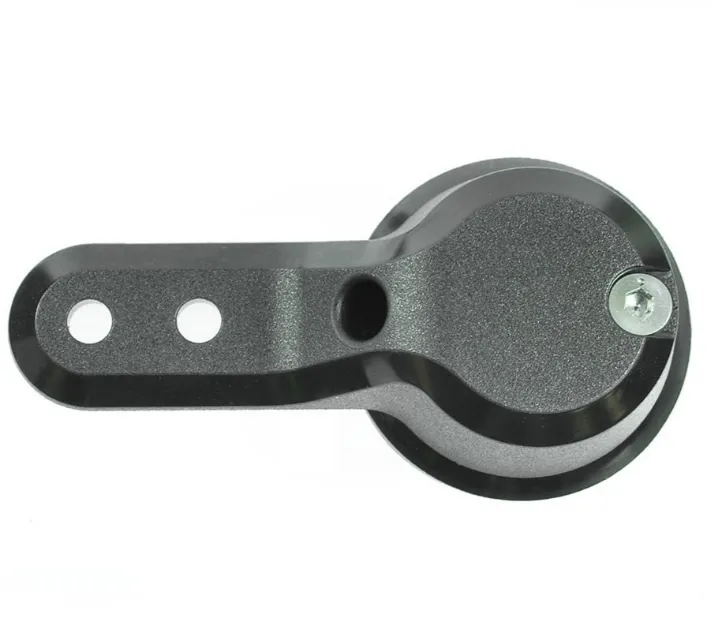

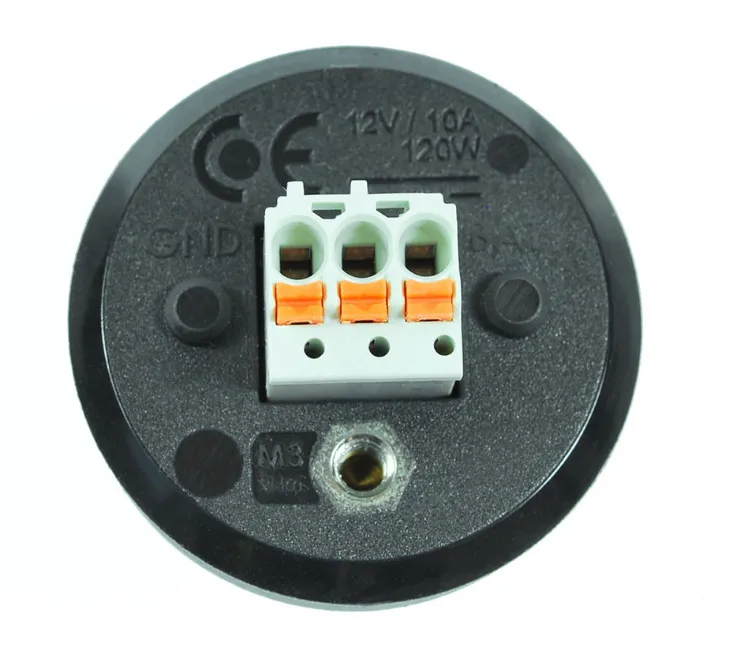

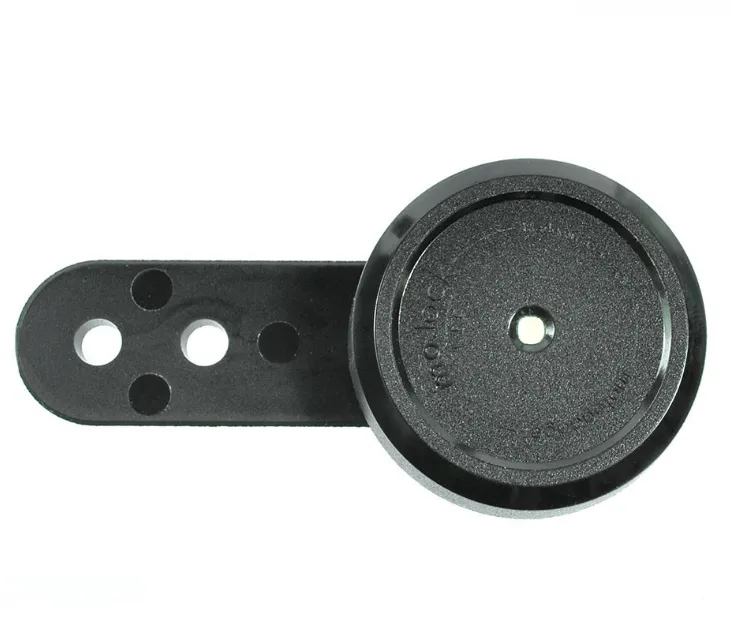

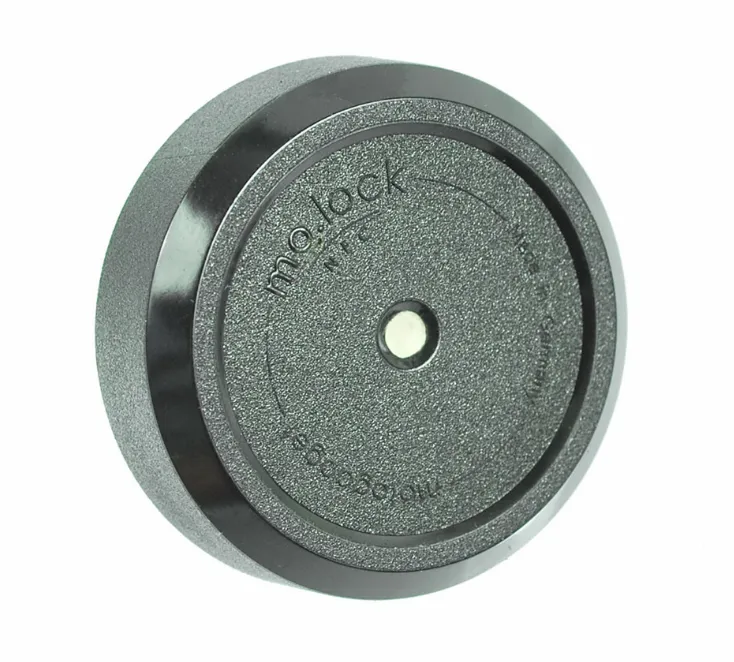

The mo.lock NFC is a contact-free digital ignition lock that uses NFC technology (based on RFID) to replace mechanical ignition locks or their electrical switching features.

The associated digital key/transponder only needs to be approached to the mo.lock NFC (switching distance approx. 20-40 mm) and the ignition is completely contact free switched on or off.

The mo.lock NFC is based on cutting-edge NFC (Near Field Communication) technology and is thus tamper-proof, unlike radio remote controls. Every key/transponder has its own digital code.
Only the correct digital code can be used to activate the mo.lock. The key/transponder and mo.lock have no mechanical wear.

The mo.lock activates an automotive relay with a maximum load of 40 A, providing enough power for any on-board system.

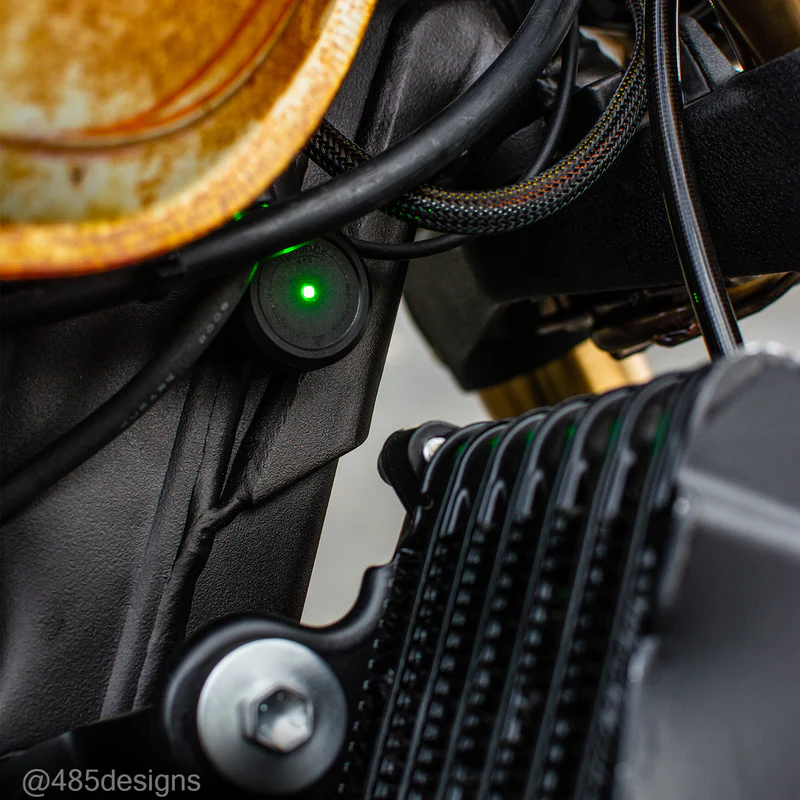

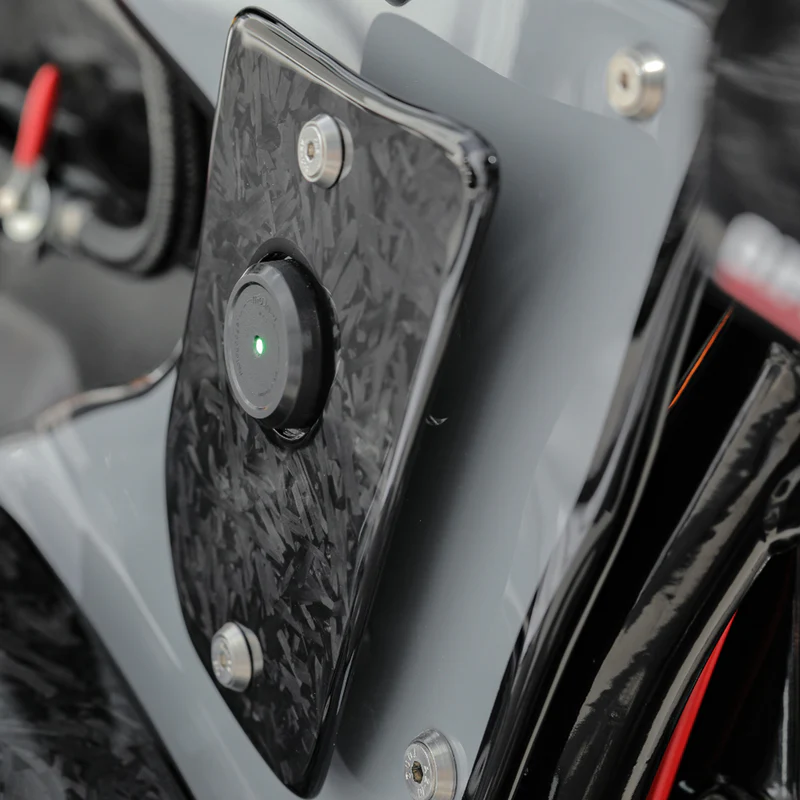

The mechanic ignition lock can be completely removed due to the hidden mounting of the small mo.lock, which is covered by non-metallic parts such as a plastic side panel. A clean appearance and a variety of design options are guaranteed - especially for custom bikes!

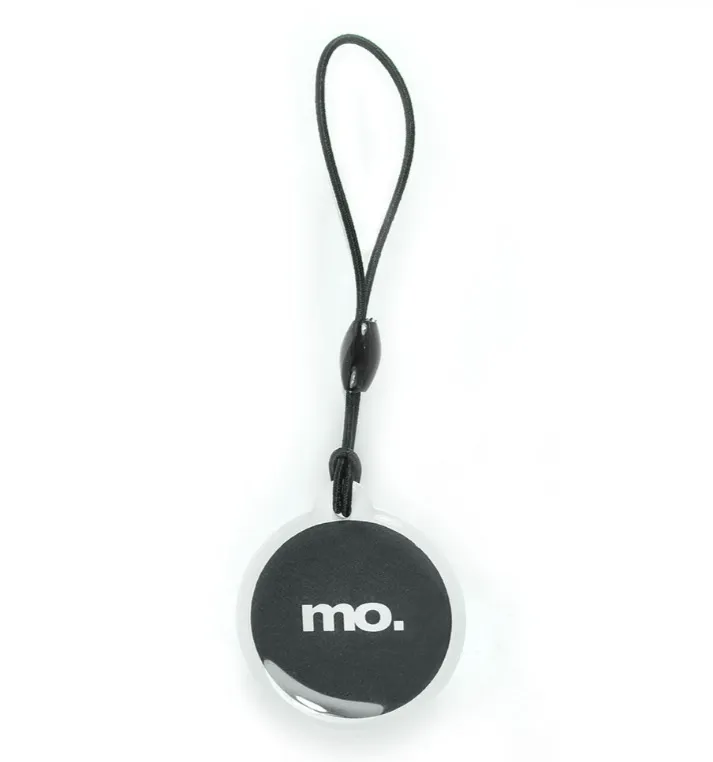

The two included keys are key fob-sized and can be used to turn on/off the device as well as learn/teach new keys. Up to 125 keys can be learned/taught.

We do not recommend using the mo.lock in conjunction with immobilizers! For information on deactivating the immobilizer, contact your dealer or manufacturer.

Advantages

• NFC technology is tamper-resistant
• Each key has a unique code
• The key first activates the mo.lock without touching it and then, via the relay, the entire on-board system
• Neither key nor mo.lock NFC suffer from mechanical wear
• The key requires no battery
• No overload or scorched pins possible due to indirect switching via the 40 A main relay
• The mo.lock NFC is very compact an can be mounted hidden in many places
• Water tight and vibration resistant because of the moulded-in construction
• Keys can be easily purchased and 'learned' to any mo.lock NFC - your integrated locksmith
• A switching distance of 2 - 4 cm ensures convenient switching while excluding the possibility of accidental engagement
• An integrated RGB-LED shows the status of the mo.lock while switching, connecting and 'teaching' new keys

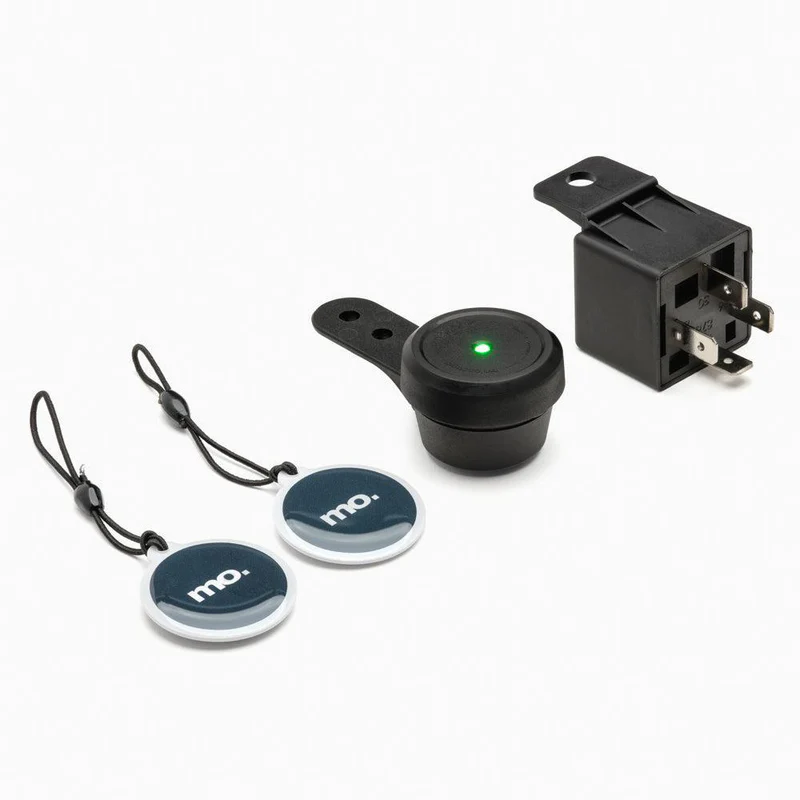

Parts delivered

• mo.lock NFC
• 2 keys
• 1 automotive relay 12V/40A
• Detailed installation and operating instructions
• ATTENTION: Please order connection cable separately.
