Description

Motogadget m-Relay + Flasher Relay For Push Buttons.

More information:
The PLUS is where it's at!

The mo.relay+ purposefully combines a load independent digital flasher relay and electronic push-button controls.

Depending on how long the respective turn signal push-button is activated, 4 different operating modes are available:

Change of lane: Short tap on push-button - blink 3x and automatic switch-off.

Turn: Pressing push-button shortly - blink 10x and automatic switch-offy.

Continuous flashing: Pressing push-button longer - switching off only after pressing the push-button repeatedly.

Additionally the mo.relay+ is equipped with a hazard flasher function - activated by pressing both push-buttons simultaneously.

The mo.relay+ is load independent (1-100 W) and provides a constant flasher frequency to almost all models of LED, micro or halogen turn signal lights as well as 10 or 21 W light bulbs. Immediate, loss free and brighter illumination results from the effective microelectronic.

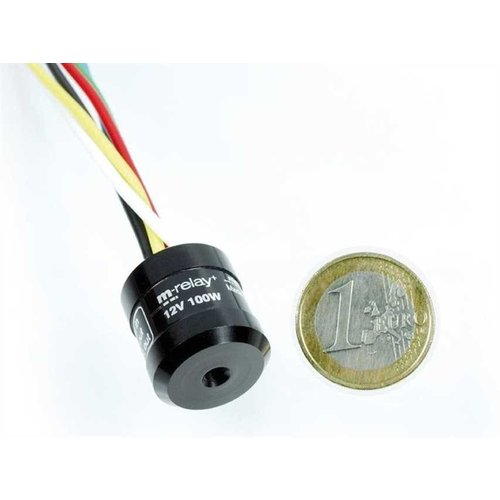

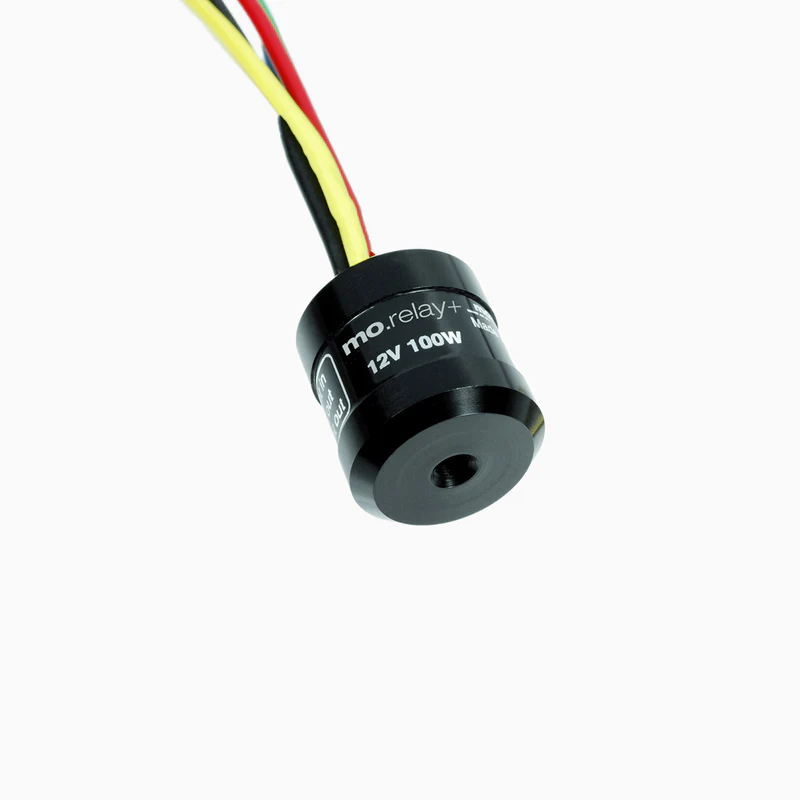

The light and compact aluminium casing is anodized black and features a M3 mounting thread. Removable mounting with cable ties is also possible. Ideal for mods and custom bikes with restricted mounting space. The electronics are water-tight, vibration resistant and are equipped with an overload protection.

If you are looking for a flasher relay WITHOUT push-button controls please refer to our mo.flash or mo.wave series.

If you are looking for a flasher relay WITHOUT push-button controls but with automatic deactivation please refer to our mo.stop series

If you are looking for fully featured push-button controls with lots of additional features, please refer to our mo.unit series.



Details:



  • Very compact, light and easy to mount
  • Ideal for custom bikes and mods with little mounting space - bulky conventional relays or load resistors are a thing of the past
  • No additional push-button control unit necessary
  • Intuitive time control and automatic deactivation
  • Almost load independent (min. 1 Watt)
  • Completely implemented using digital semiconductor technology. microprocessor controlled No mechanical workings, no spools, no electrical contacts
  • Consistantly constant and correct flasher frequency and suited for almost all LED turn signal lights, all micro and halogen turn signal lights as well as all 10-watts and 21-watts turn signal lights
  • e. g. works with 4 turn signal lights or 2 handle bar end turn signal lights
  • Immediate loss free and brighter illumination of all turn signal lights
  • Completely water tight and vibration resistant because of the moulded-in construction
  • Short circuit proof, automatic overload protection, switches power up to 100 W.
  • No heat generation while operating
  • Only 5 - 18 V operating voltage required
  • Quality 'made in Germany' - by motogadget




Dimensions: Diameter 19 mm (without cable), height 19 mm
