✔ Immediately Available
Description

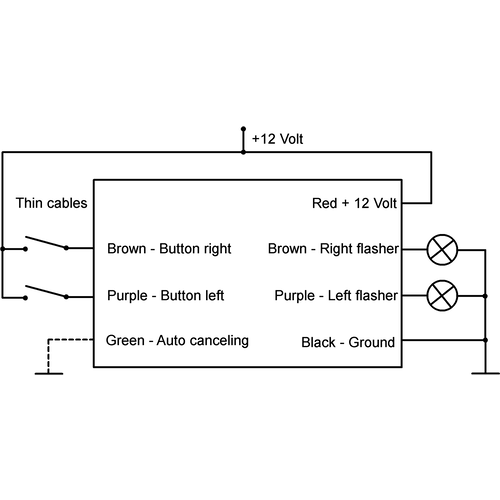

This is a small flasher controller for push-buttons in a small package that will fit in every handlebar. This device is controlled via 12 Volt inputs, what make it easier to implement in an existing OEM harness if no minimal wiring is required. An auto-cancel function can be activated. It switches off the indicators after a while if no button is being pushed.

Dimensions:38 mm  x 16 mm x 11 mm
Maximum current:Maximum 7mA mikrokontroller, 2 x 5 Ampere outputs
Housing:Black abs housing
Input voltage range:7 - 18 Volt
Connections:Control 0,5mm², Power side 1 mm², je 10 cm
Maximum ambience temperature:80 Grad Celsius
Maximum current:5 Ampere, short circuit protected. (15 Ampere)
