Speedometer | Display range: 0~360 km/h (0~223 MPH) |
| Display unit: km/h & MPH for alternative |
Display internal | <0.5 second |
Odometer | Display range: 0~99999.9 km (mile), reset automatically after 99999.9 km (mile). |
Trip meter A/B | Display range: 0~999.9 km (mile), reset automatically after 999.9 km (mile) |
Speeding warning light | Setting range: 30~180 km/h (20~110 MPH) |
| Setting unit: 5 km/h (MPH) |
Top speed record | Display range: 0~360 km/h (0~223 MPH) |
Tyre circumference | Setting range: 300~2,500 mm |
| Setting unit: 1 mm Sensitive point: 1~60 |
Tachometer | Display range: 0~15,000 RPM |
| Display unit: 100 RPM |
Display internal | <0.5 second |
Shift light | Setting range: 5,000~15,000 RPM |
| Setting unit: 100 RPM |
MAX RPM record | Display range: 0~15,000 RPM |
Stroke / piston setting | 2 Stroke: 1, 2, 3, 4 pistons |
| 4 Stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons |
Thermometer | Display unit: ℃ & ℉ for alternative |
Digital thermometer(Water & oil temperature) | Display range: 0~120℃ (32~248℉) |
| Display unit: 0.1℃ (℉) |
Level thermometer(Water temperature) | Display range: 20~120℃ (68~248oF), 10 levels |
| Display unit: Each level represents 10℃ (50℉) |
Display internal | <0.5 second |
Over heat warning(Water & oil temperature) | Setting range: 60~120℃ (140~248℉) |
| Setting unit: 1℃ (℉) |
Top temperature record | Display range: 0~120℃(32~248℉) |
Fuel meter | Display range: 10 levels |
| Display unit: Each level represents 10 % |
| Setting range: 100 Ω 510 Ω no display |
Insufficient fuel warning | Setting range: 10~50 % |
| Setting unit: 10 % |
Clock | 24 H |
Target speed timer | Setting range: 30~360 km/h (20~220 MPH) |
| Setting unit: 5 km/h (MPH) |
Target distance timer | Setting range: 50~1,000 M (1/32~20/32 mile) |
| Setting unit: 50 M (1/32 mile) |
Top speed timer | The record including, |
| 1. Speed: 0~360 km/h (0~223 MPH) |
| 2. Distance: 0~999 M (0~3,280 feet) |
| 3. RPM: 0~15,000 RPM |
| 4. Timer: 0~9'59"99 second. |
Effective voltage | DC12V |
Effective temperature range | -10~+60℃ |
Meter standard | JIS D 0203 S2 |

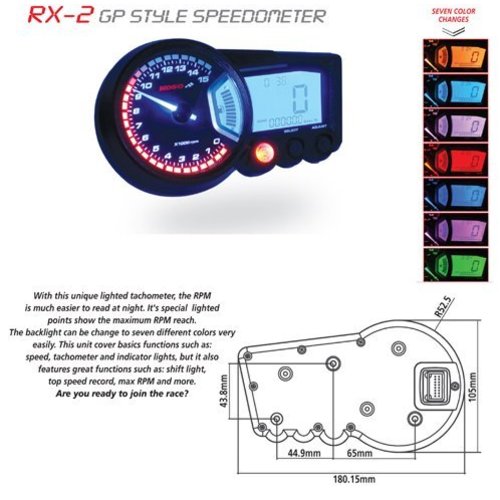

Meter size | 151.8 X 81.5 X 52.5 mm |
Meter weight | Around 305 g |
Indicator light color | Neutral(Green).High beam(Blue).Repeater(Green).EOBD(Amber).Oil(Red).Speeding(Red). |
| RPM shift light (Yellow / Red) |
