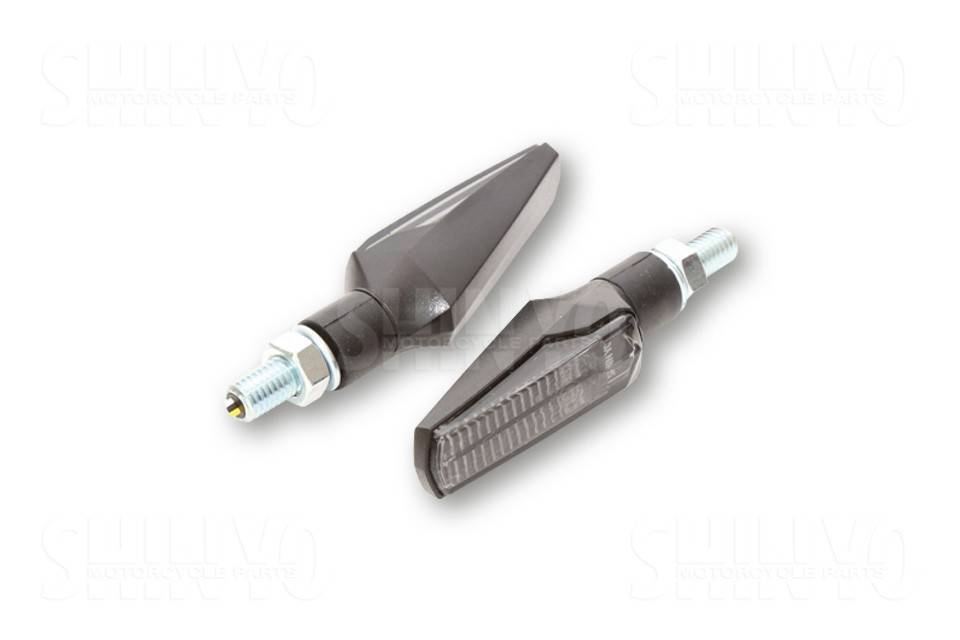

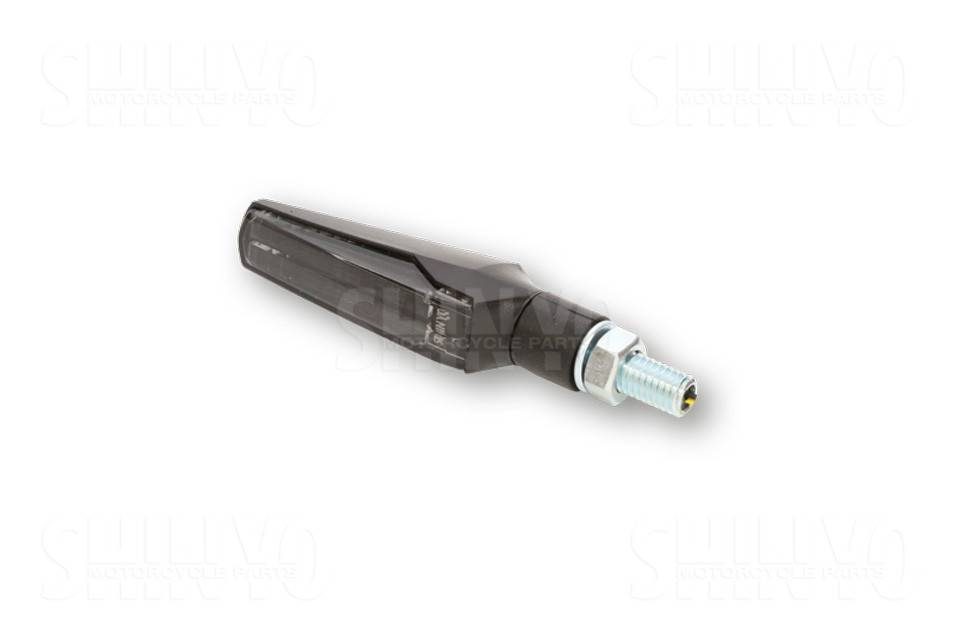

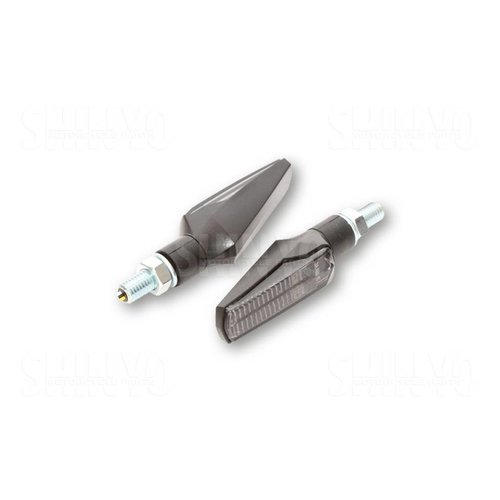

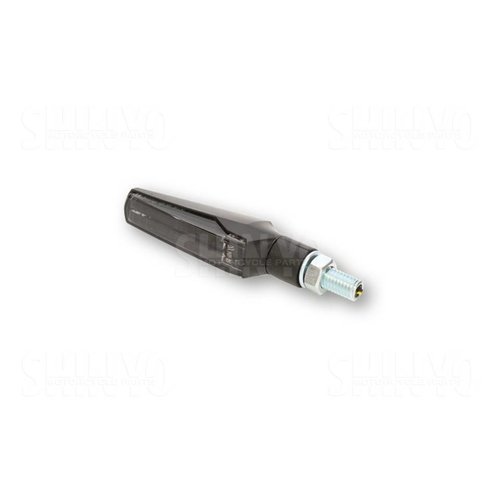

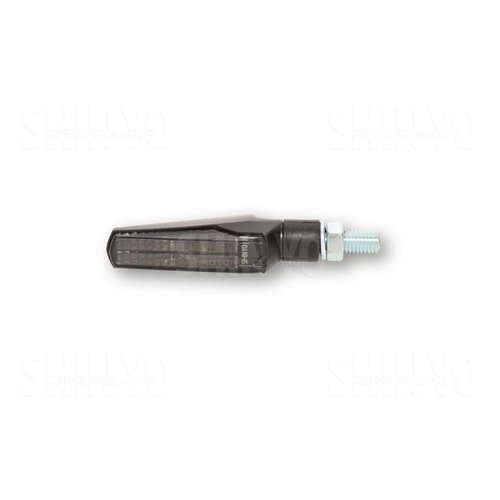

SHIN YO LED Indication, black housing, smoke lens, E-mark front and rear use.
Black sturdy plastic housing with rubber handle and smoke glass. The FINELINE indicator has a light guide system that is equipped with 4 SMDs. A light guide is a structure designed to transmit light from a light source to a point at some distance with minimal loss. With its countless positive functions, such as light colour and light intensity, this LED indicator even meets the most demanding users.

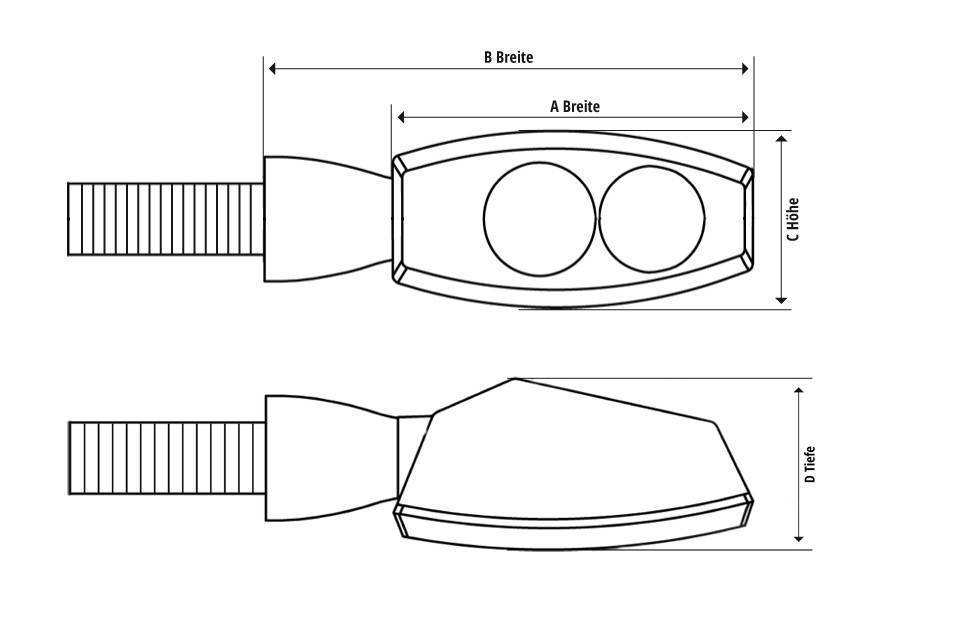

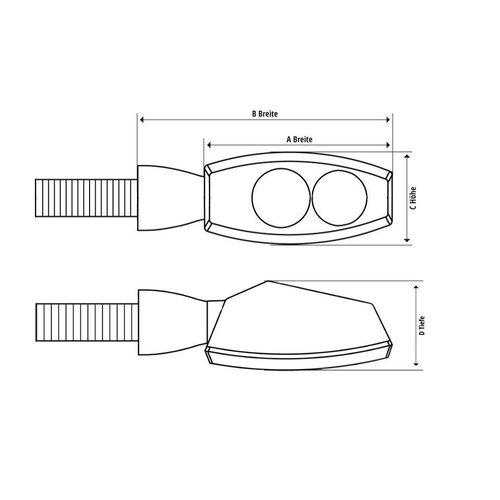

Dimensions:
Width A: 58 mm
Width B: 70 mm
Height C: 17 mm
Depth D: 25 mm
Screw with thread: M8x1.25 mm
Connection:
Yellow: indicator (+)
Black: ground (-)
White: position light (+)
Connection:
Yellow: indicator (+)
Black: ground (-)
White: position light (+)
The price is for 2 pieces.
