Beschrijving

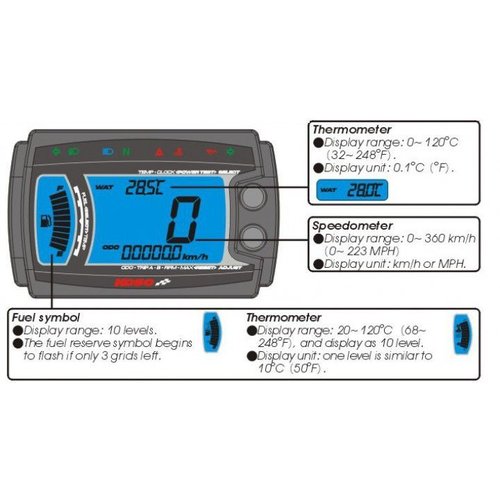

KOSO XR-SRN. KOSO digital multifunction cockpit, XR-SR ABE, with indicator lights, blue backlight, speed, tachometer, odometer, trip odometer, oil and water temperature, fuel gauge (adjustable 100/510 ohms). For the following functions, a maximum value can be set with warning indicator: Speed, rpm, water temperature, ÌÐltempemperatur, tank warning. Supplied with universal sensor and mounting kit and detailed English manual.


Function, setting instruction
SpeedometerDisplay range: 0~360 km/h (0~223 MPH)
 Display unit: km/h & MPH for alternative
Display internal<0.5 second
Odometer0~99999.9 km, reset automatically after 99999.9 km (mile)
TTrip meter A.B0~999.9 km, reset automatically after 999.9 km (mile)
Top speed recordDisplay range: 0~360 km/h (0~223 MPH)
Tire circumferenceSetting range: 300~2,500 mm
 Setting unit: 1 mm Sensor point: 1~6
TachometerDisplay range: 0~18,000 RPM
 Display unit: 100 RPM
Display internal<0.5 second
MAX RPM recordDisplay range: 0~18,000 RPM
Stroke / piston settingDisplay range•__0.5, 1, 2, 3, 4, 5, 6
TemperatureDisplay unit: &  for alternative
Digital water ÊtemperatureDisplay unit: 0.1  (0.1)
Temperature level gaugeDisplay range: 20~120 (68~248), 10 level
 Display unit: 1 level=10 (50 )
Display internal<0.5 second
Top temperature recordDisplay range: 0~120  (32~248 )
Fuel indicatorDisplay range: 10 levels
 Display unit: Each level represents 10 %
 Setting range: 100•__510
Clock24 H
Top speed timerThe record including
 Speed•__0~360 km/h (0~223 MPH)
 Distance•__0~999 m (0~3280 feet)
 Timer•__0~9'59"99 second
Effective voltageDC 12V
Effective temperature range-10~+60oC
Meter standardJIS D 0203 D3
Meter size116.3 X 72.4 X 32.3 mm
Meter weightAround 286 g
TelltalesNeutral (Green)•__High beam (Blue)•__Low beam (Green)•__Winker (Green)

Hazard (Red)•__Oil pressure (Red)•__Water temperature light (Red)

Asked one(Click contact confirmed)

Add Item numberNameBack light colorPanel colorDisplay RangeNote
BB017B00XR-SRNBLUEBLACK0~18000RPMPASSIVE SPEED SENSOR:135cm
